The WN523N2 extender that comes under the WiFi 4 extender list works as a repeater to repeat the router’s signals. With its easy installation method, it comes with cutting-edge technical terms. Even configuring this device can be an easy task for the first-time user. However, he must have some basic information about this. Keep reading these points to get to know more details.

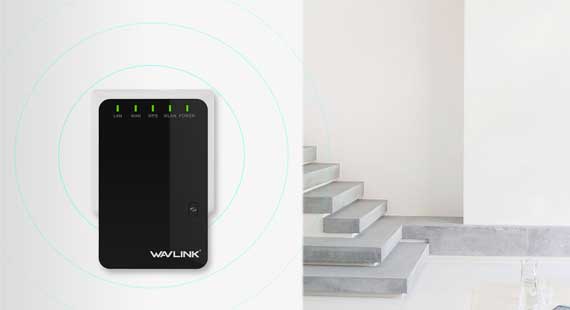

WL WN523N2 N300 LED Indications

To perform the setup process easier, have a look over the extender’s LEDs once. Basically, there are five different lights on the extender’s top which notifies the distinct signs.

WAN– It will notify you whether the extender and router are connected well or not.
WPS– This light defines the extender connection through the WiFi Protected Setup method.
LAN– Through this light, you can get to know about the devices that are connected through ethernet wires.
WLAN– The WLAN light will be On when the wireless local area network feature is active.
POWER– It indicates whether the extender is in working condition or not. Or if it is getting proper electric supply or not.

N300 LED Indications

WPS Method For WN523N2 N300 Extender

There will be a WPS button on the extender front panel through which you will be able to install this device in no time.

  • Plug the extender into the power outlet near the host router placement.
  • Verify the power light on the extender and then press its WPS button.
  • As a result, the WPS light will start blinking means the extender is in the findable condition.
  • At the same time, push the router’s WPS button for a short while.
  • As soon as the device’s LEDs turn constant, connect your device to it.
  • After doing this, you can connect a range of devices to the network.

Wizard Manual Setup For WN523N2 Repeater

Besides the WPS approach, you can make use of any web browser on the device to execute the process.

  • Open any updated web browser on the device after connecting it to the extender network.
  • To make a wired connection, join the ethernet cable from one end into the extender port.
  • Whereas inserting the remaining end of the wire into the device’s ethernet port.
  • On the other hand, for a wireless connection, select the extender network from the list of your device.
  • Fill in the right or default network password and click the Connect button.
  • Coming back to the process that is searching for the extender’s web or IP address in the search field.
  • Here, wifi.wavlink.com and 192.168.10.1 are the web and IP addresses of the extender.
  • As soon as you visit the login portal, fill in the extender’s login information in the prompted field and click Sign-In.
  • Take the official login credentials from the extender setup manual and use them appropriately.
  • After visiting the next page, select the network from the settings that you want to improve.
  • Execute and fill in some basic things in the required field to complete the procedure.
  • Thus, attach more devices to the network to get better internet coverage throughout every corner of your place.

Solve WN523N2 Extender Malfunctioning

In any case, if the WL WN523N2 N300 extender setup starts disconnecting, use some solutions to fix that.

WN523N2 Extender Malfunctioning
  • Check the router’s existing internet plan if it is active or not.
  • Also, verify whether the router is providing signals to the extender or not.
  • Then, see the extender’s LEDs to examine the reason behind the error.
  • Make the wireless or wired connection again if these are not working.
  • Moreover, unplug the extender and plug it into another power outlet.
  • As sometimes the power outlet may be broken and not working.
  • Further, check the device’s web browser and update it if required.
  • Lastly, reset the extender to eliminate the errors for always.
  • Press the reset button and let the extender complete the process.
  • Reconfigure the extender and use its accurate details while doing this.

Thus, use these above-mentioned tips to configure and use the WL WN523N2 N300 extender setup appropriately. However, to get more help with this product, call our experts at 716-992-6371 or mail care@wifiwavlink.net as quickly as possible. They will surely assist you through every stage of the process.
