Wavlink AC1200 Setup

Several devices are available in the market, out of which the Wavlink AC1200 devices are very popular, which offer high-speed internet in every corner. Currently wavlink ac1200 device models available in the market are WL-WN572HG3, WL-WN572HP3, WL-WN572HE4, WL-WN572HE4D, WL-WN570HA2, WL-WN530HG4 and WL-WN531A6. If you have any of these models, then this article will be very beneficial for you.

Wavlink 1200 setup seems to be a very challenging process. People often get confused about which mode they should set up the device in so they can optimize the network. You can set up Wavlink AC1200 in different modes as per your requirement and get a better network across your space. Here, we are going to provide you with complete information about the setup of the device in all modes. Whether you want to configure your device in repeater mode, router mode, access point mode, or need help with outdoor setup, you will get every single detail here.

Wavlink ac1200 setup instructions specified further on this page are detailed in such a manner that even a person who doesn’t know about networking can also perform the setup. With the help of the Wavlink AC1200 manual PDF from the official source, we created this complete guide for our readers. Here, every step is mentioned in the simplest way so you can understand the Wavlink AC1200 setup process related technicalities.

Wavlink AC1200 Device Specifications

Before setting up a Wavlink AC1200 device, you need to know the device specifications. Here we are going to specify the device specifications:

• Dual-band Wi-Fi (2.4GHz + 5GHz)
• Speed up to 1200 Mbps
• Supports router, repeater, AP, and WISP modes
• High-gain external antennas
• Gigabit WAN/LAN ports
• WPA/WPA2 wireless security
• Wide coverage for indoor and outdoor use

You can easily perform the Wavlink AC1200 configuration at homes, offices, and commercial spaces.

Setup Requirements

You need to accumulate a few items and details prior to going ahead with the Wavlink AC1200 setup. Here we are going to list the requirements of the Wavlink 1200 setup:

• An active internet connection
• Ethernet cable
• Router modem
• Power outlet
• Laptop or smartphone

If you have all the above-listed items, then you can perform the Wavlink AC1200 dual-band gigabit wifi router setup, Wavlink AC1200 dual-band Wi-Fi range extender setup, Wavlink AC1200 access point setup, & wavlink ac1200 outdoor setup easily by following the further given instructions.

Wavlink 1200 Setup In Router Mode

Wavlink AC1200 dual-band wireless router setup is the ideal option for you to use as a primary wireless router. Performing the Wavlink AC1200 configuration is not so difficult if you are aware of the following Wavlink AC1200 setup instructions.

Hardware Installation

To proceed with the Wavlink 1200 setup in router mode, you need to perform the Wavlink AC1200 installation appropriately. Installation may include certain steps as mentioned here:

• First of all, you need to unbox your Wavlink AC1200 device and remove the packaging.
• Afterwards, you need to start hunting for a place to put the device closer to your modem.
• Keep a distance between both devices, only as long ethernet cable you have to connect them
• Make sure the cable you are using to connect the Wavlink AC1200 router to the modem device is working appropriately.
• In addition to this, you need to be sure that the modem’s power is turned off to proceed with the Wavlink AC1200 setup process.
• Insert the cable into the WAN port of the router device to connect it with the LAN port of the modem device.
• Now, power on the router device and the modem device by connecting them to the power source.
• Using the power adapter, you have to start the device by connecting it to the wall outlet nearby.
• Turn on the power supply and wait for your device to boot up.

Once the WavlinkAC 1200 is ready, you can proceed with the configuration of the device using the Wavlink AC1200 dual-band Wi-Fi router manual.

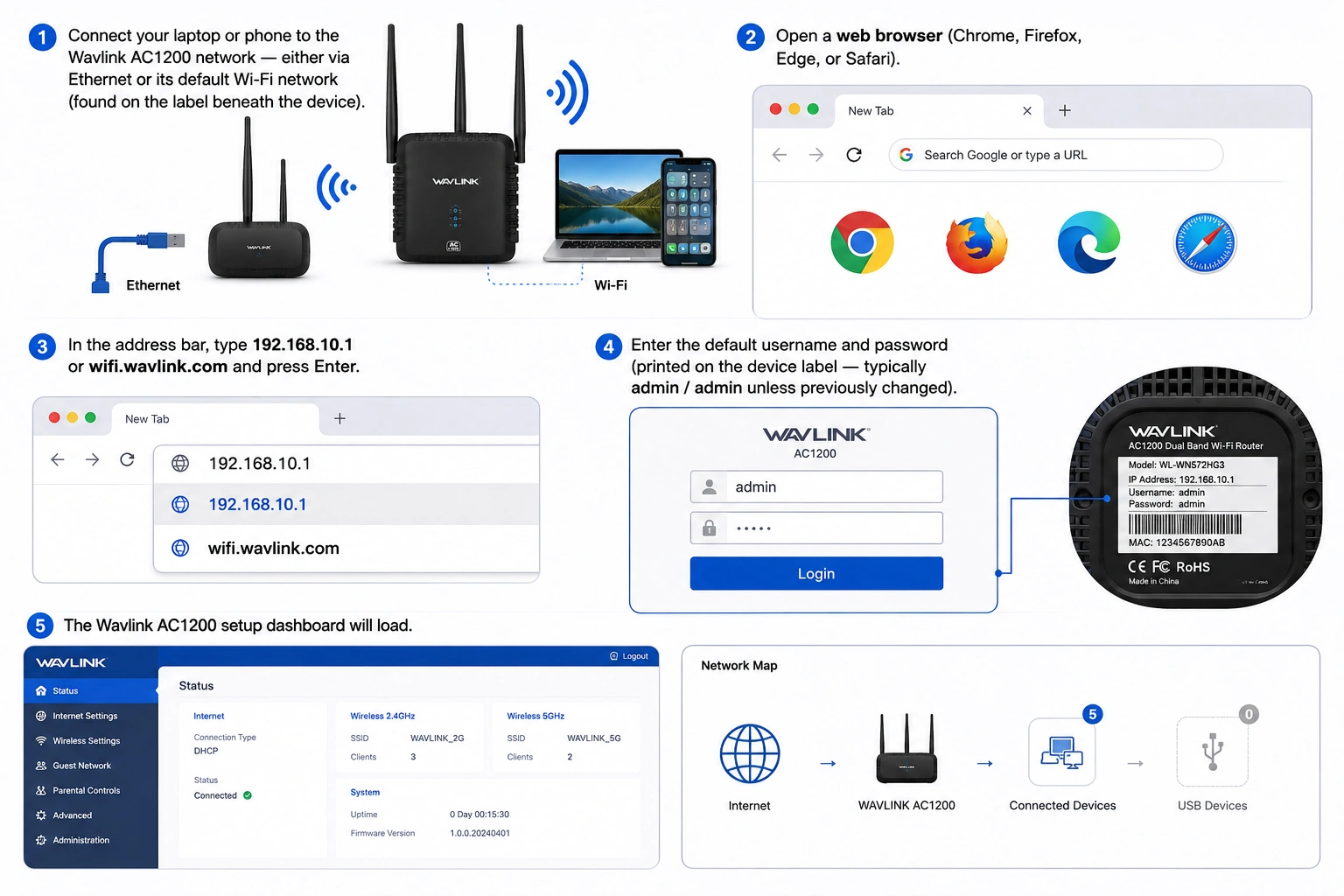

Configuration

Step ahead in the Wavlink AC1200 dual-band gigabit wifi router setup procedure and start the configuration of the device. The steps involved in Wavlink AC1200 configuration are as follows:

• Select a computer, laptop, or smartphone to access the setup page.
• Now connect your device to the router network using the Ethernet cable or wireless network connection.
• Afterwards, you have to launch a web browser to access the Wavlink AC1200 dual-band wireless router setup page.
• In the URL bar of the browser, you need to mention the IP address 192.168.10.1 or the web address wifi.wavlink.com to reach the admin panel.
• The page will display on the screen where you have to mention the Wavlink AC1200 default password along with the username.
• This will allow you to access the Wavlink AC1200 setup page from where you can configure the settings.
• First, choose the mode in which you are going to set up the device as router mode.
• After that, you have to configure the internet settings to connect your device to the modem’s internet.
• Choose your connection type: DHCP, PPPoE, Static IP, and proceed with the steps accordingly.
• When the configuration of internet settings is done, and your device is connected to the internet, you can configure the other important settings.
• Make changes in the wireless network settings, security settings, admin account username and password, guest network setup, parental control, and other important settings.
• Lastly, you have to check for the firmware update and finalize the setup by submitting the details.

By following the above given Wavlink AC1200 setup instructions, you can easily configure the device in router mode.

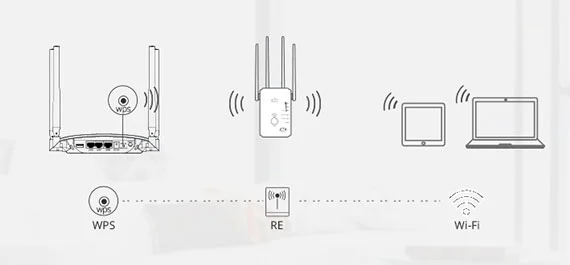

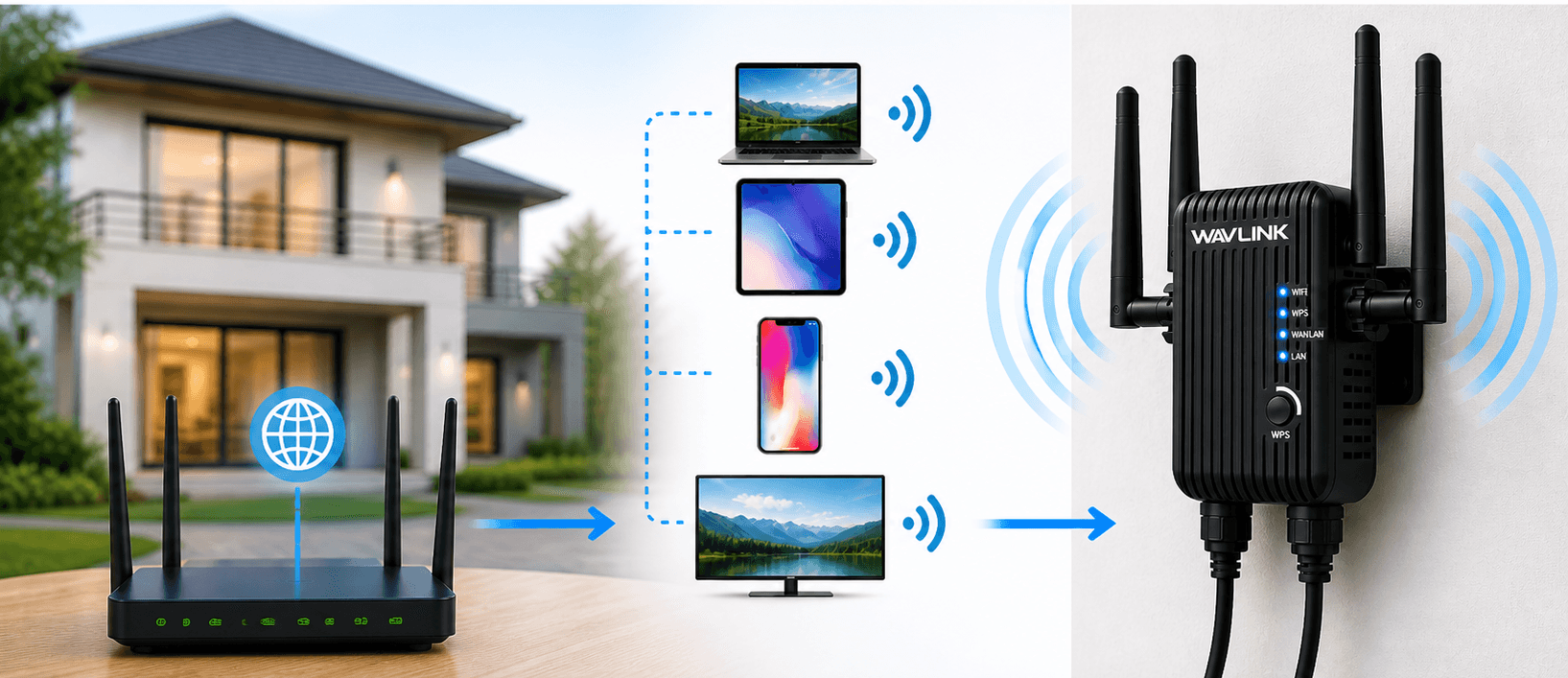

Wavlink AC1200 Repeater Setup

Wavlink AC1200 dual-band Wi-Fi range extender setup is the ideal option you have to boost the coverage of your router even outside your home. You can enhance the coverage inside and outside areas also by configuring in repeater mode. Here, we are going to specify the step-by-step instructions to perform the Wavlink AC1200 outdoor setup. Performing the Wavlink AC1200 configuration is not so difficult if you are aware of the following Wavlink AC1200 setup instructions.

Hardware Installation

To proceed with the Wavlink 1200 setup in repeater mode, you need to perform the Wavlink AC1200 installation appropriately. Installation may include the following steps, which will help you to boost the home or office wifi coverage:

• Initiate with unboxing your Wavlink AC1200 device and remove the packaging.
• Thereafter, you need to start hunting for a place to put the device closer to your router.
• Now, power on the AC1200 extender device by connecting it to the power source.
• Start the power supply and wait for your device to boot up.

Once the Wavlink AC1200 is ready, you can proceed with the configuration of the device using the Wavlink AC1200 dual-band Wi-Fi range extender manual.

Configuration

Step ahead in the Wavlink AC1200 repeater setup procedure and start the configuration of the device. The steps involved in Wavlink AC1200 configuration are as follows:

• Choose a computer, a laptop, or a smartphone device to access the setup page.
• Now connect your device with the repeater network using the Ethernet cable or wireless network connection.
• Afterwards, you have to launch a web browser to access the Wavlink AC1200 dual-band Wi-Fi range extender setup page.
• In the URL bar of the browser, you need to mention the IP address 192.168.10.1 or the web address wifi.wavlink.com to reach the admin panel as specified in the Wavlink AC1200 manual.
• Now it’s time to enter the Wavlink AC1200 default password along with the username.
• Now you can access the Wavlink AC1200 setup page to configure the settings.
• Next, opt for the mode in which you are going to set up the device as repeater mode.
• Proceed ahead in the process and select your router network name.
• Enter the password to connect the device to the internet and then perform other settings, including wireless network settings, security settings, and admin account username and password.
• Lastly, you have to check for the firmware update and finalize the setup by submitting the details.

You might need to relocate the device to a better location so you can get the benefit of the Wavlink 1200 setup appropriately. While relocating, make sure the device is kept within the range of the router. If you desire to perform a Wavlink AC1200 outdoor setup, then you need to search for an outdoor location and hang the device on a wall or pole located within the range.

Wavlink AC1200 Access Point Setup

The Wavlink AC1200 access point setup is the ideal option when you want wired internet converted into wireless coverage. Performing the Wavlink AC1200 configuration in AP mode is not so difficult if you are aware of the following Wavlink AC1200 setup instructions.

Hardware Installation

To proceed with the Wavlink 1200 setup in AP mode, you need to perform the Wavlink AC1200 installation appropriately. Installation may include the following steps, which will help you to boost the home or office wifi coverage:

• First of all, you need to unbox your Wavlink AC1200 device and remove the packaging.
• Afterwards, you need to start hunting for a place to put the device closer to your modem/ router device.
• Keep a distance between both devices only as long ethernet cable you have to connect them
• Make sure the cable you are using to connect the Wavlink AC1200 with the modem/ router device is working appropriately.
• In addition to this, you need to be sure that the router’s/ modem’s power is turned off to proceed with the Wavlink AC1200 setup process.
• Insert the cable into the LAN/ WAN port of the Wavlink device to connect it with the LAN port of the modem/ router device.
• Now, power on the devices by connecting them to the power source using the power adapter.
• Turn on the power of the Wavlink AC1200 and then just wait for your device to boot up.

Once the WavlinkAC 1200 is ready, you can proceed with the configuration of the device using the Wavlink AC1200 Mesh Manual PDF.

Configuration

Further in the Wavlink AC1200 access point setup procedure, start the configuration of the device. The steps involved in Wavlink AC1200 configuration are as follows:

• Opt for a computer, a laptop, or a smartphone device to access the setup page.
• Now connect your device with the Wavlink AC1200 network using the Ethernet cable or wireless network connection.
• Thereafter, you have to launch a web browser to access the Wavlink 1200 setup page.
• In the URL bar of the browser, you need to mention the IP address 192.168.10.1 or the web address wifi.wavlink.com to reach the admin panel as specified in the Wavlink AC1200 manual.
• As the page displays on the screen, you have to mention the Wavlink AC1200 default password along with the username.
• This allows you to access the Wavlink AC1200 setup page from where you can configure the settings.
• Now you have to opt for AP mode and then move ahead in the process.
• Proceed ahead in the process and configure settings like wireless network settings, security settings, and admin account username and password.
• Lastly, you have to check for the firmware update and finalize the setup by submitting the details.

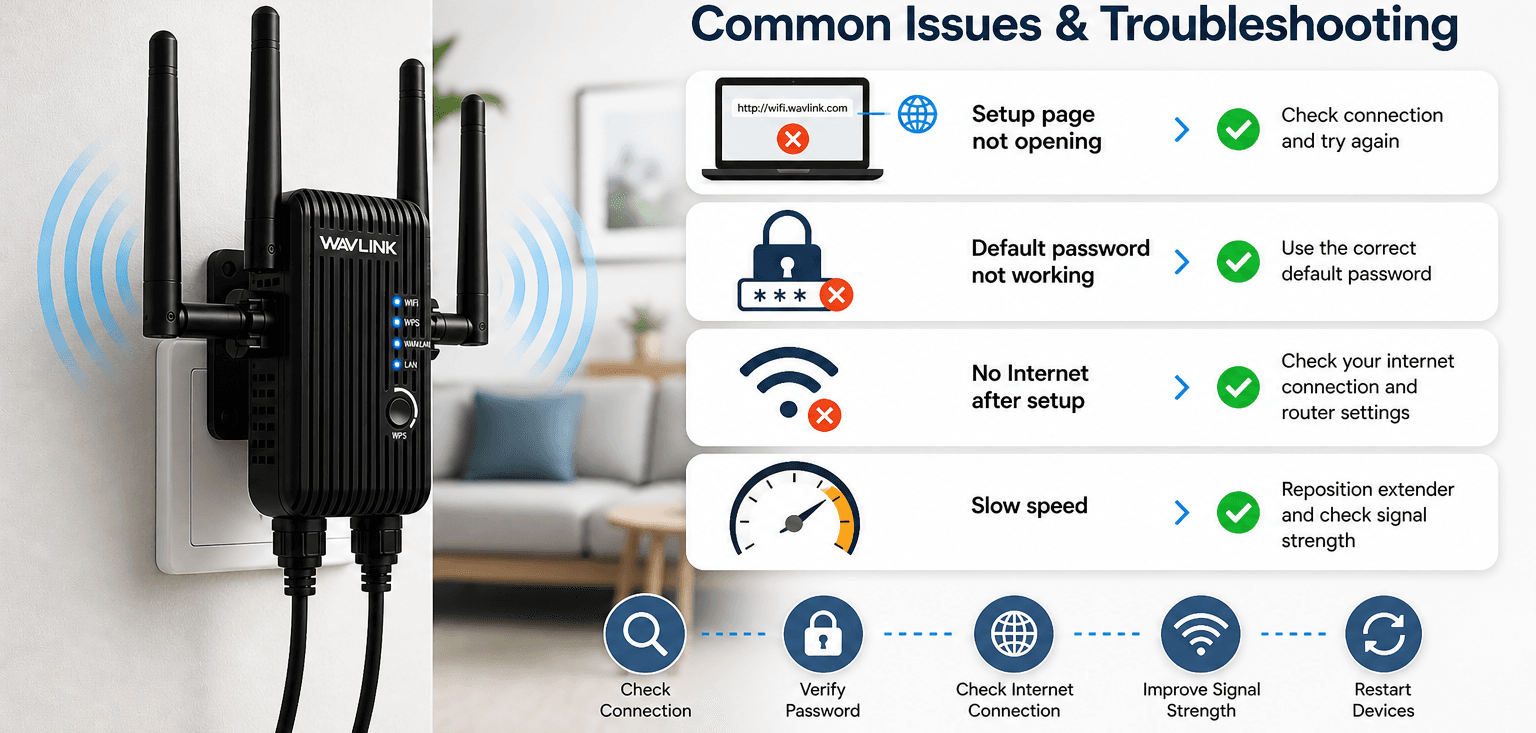

Common Issues & Troubleshooting

While performing the setup, you might experience some common errors like the Wavlink 1200 setup page not opening, the Wavlink AC1200 default password is not working, no Internet After Setup, and slow speed. Most of the people reported such issues when they were trying to do the setup. It is very important to resolve these problems to enjoy a better network connection in every corner. In the segment for the you will find the common troubleshooting guide that helps you to resolve all such errors.

Restart The Device

Many times, a simple restart can resolve the problem. To fix the issue you are experiencing with your Wavlink AC1200 setup, you need to follow these steps:

• First of all, turn off the power to the device from the power outlet.
• Wait for a while and then turn on the power again.
• When the device boots up, you have to test whether the issue you are experiencing is fixed or not.

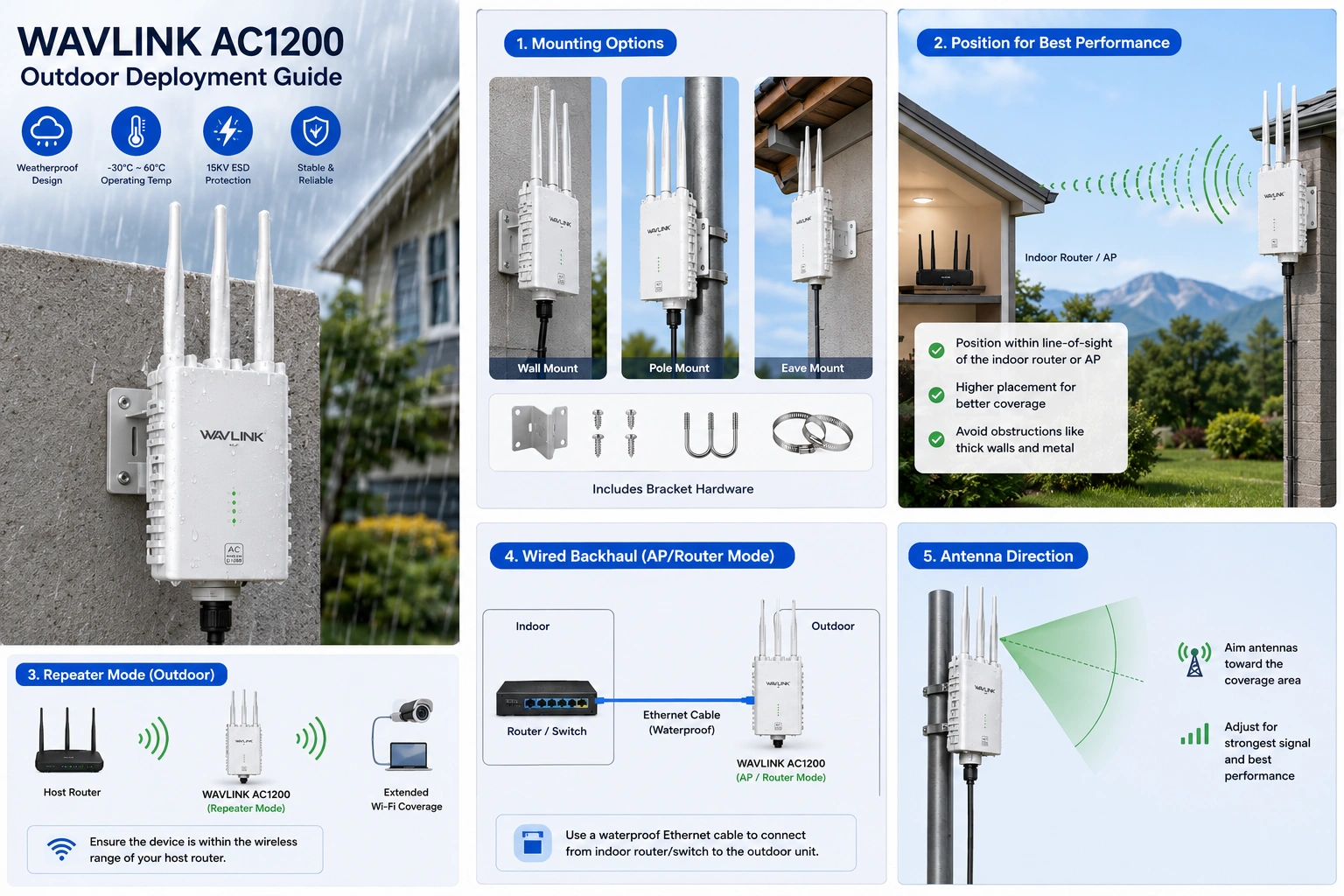

Placement Fix

While placing the device, you have to be very careful. If the device is placed too far, then you will experience trouble. While placing focus on the following things:

• Keep devices away from heavy metal objects and radio frequency devices.
• Should be closer to the host network device.
• Avoid placing it next to thick walls.
• Do not put in corners.

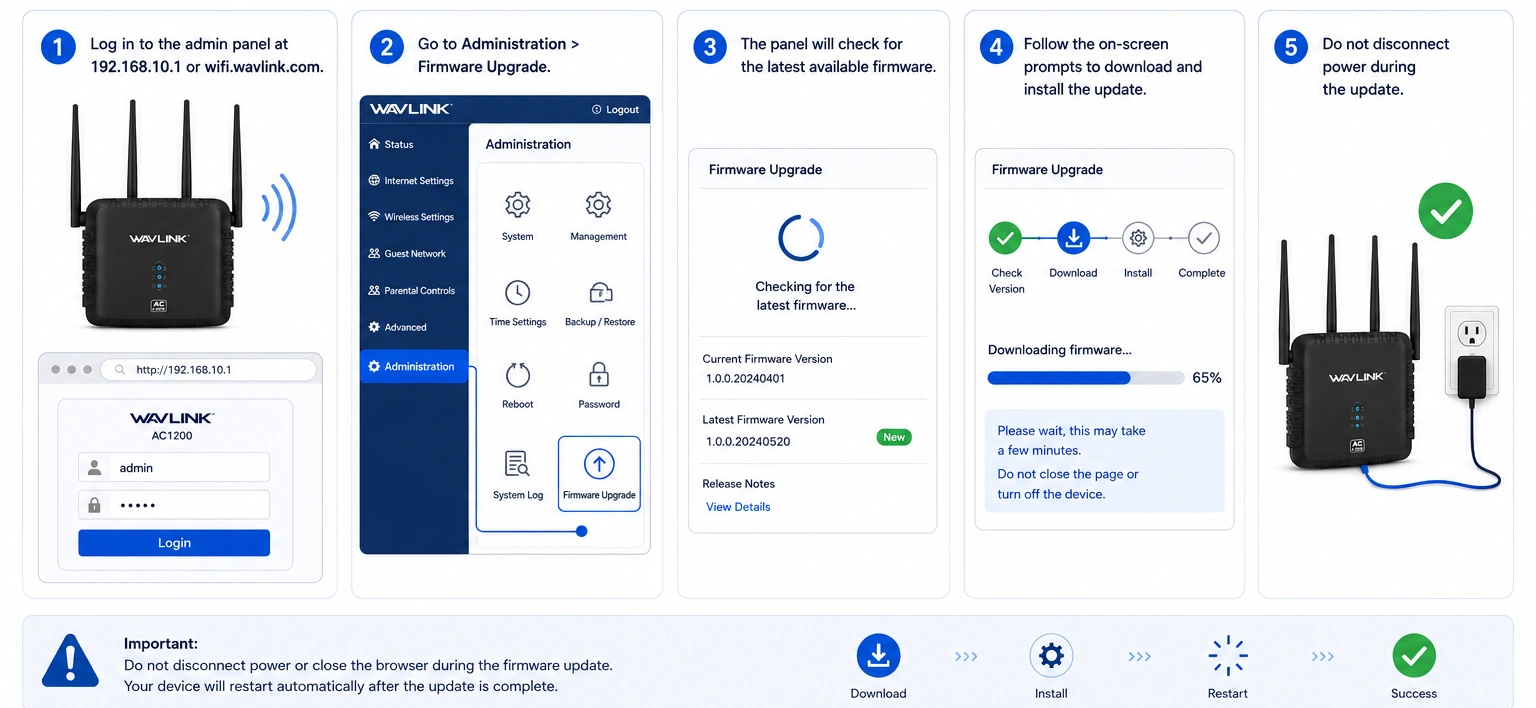

Update The Firmware

A firmware update is very important to keep the Wavlink AC1200 setup running smoothly. You can perform the update by accessing the admin panel from time to time. Here are the steps that help you perform a firmware update:

• To update access to the admin panel in the web browser.
• Rush to settings and search for firmware updates under the administration section.
• Then follow the on-screen steps to update the firmware.

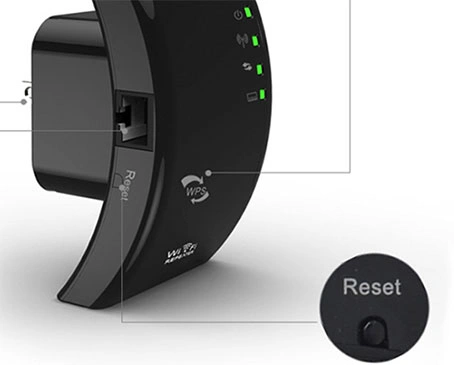

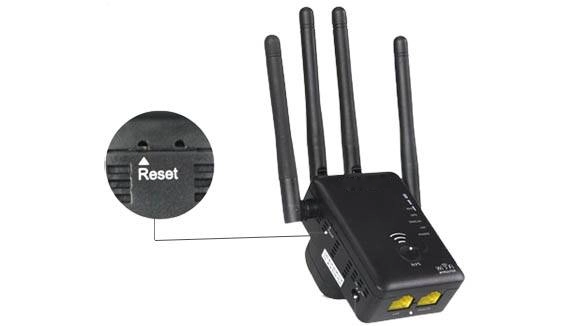

Factory Reset

Factory reset is the master stroke you have that gives a raw device again. Performing a factory reset can resolve several issues, including configuration errors. To reset the device, you need to press the reset button on the device.

Get Help If Needed

Our Tech experts are available all the time. If you experience any trouble or desire to take their help, then you can communicate easily. To connect with our experts, you can call us at the number below or drop a text in the live chat section. Our experts will help you in performing the Wavlink AC1200 setup and resolving the issue.
